How to Optimize MySQL Query Performance

Enable query performance monitoring

MySql has a default database with the name mysql and performance_schema. These two databases are useful for performance tuning of the MySQL database.

• Enable slow query logs

  SET GLOBAL slow_query_log=1;
  SET GLOBAL log_output='FILE';
  SET GLOBAL slow_query_log_file='slowqueries.log';
  SET GLOBAL long_query_time=5.0;

  Global variable name	Possible values	Description of possible values
  slow_query_log	0,1	0: Slow query logs are disabled 1: Slow query logs are enabled. When slow query logs are enabled it will check the value of the log_output variable to write the logs.
  long_query_time	Time in seconds, the default value is 10 seconds.	To prevent fast-running queries from being logged in the slow query log, specify a value for the shortest query run time to be logged, in seconds.
  log_output	FILE, TABLE	TABLE: This will write slow query logs to slow_log table and general log to which is present in the mysql database. FILE: This will write the logs to the location specified by the variable slow_query_log_file.

• Enable query logs that don't use indexes

  SET GLOBAL log_queries_not_using_indexes=ON;

  Global variable name	Possible values	Description
  log_queries_not_using_indexes	0,1	0: Logs will be disabled for the queries that do not use indexes. 1: Logs for the queries that do not use indexes are enabled and those logs will be stored along with the slow query logs.

  • Enable query logs that examine a minimum number of rows

  SET GLOBAL min_examined_row_limit=100000;

  Global variable name	Possible values	Description
  min_examined_row_limit	Integer Number	To log queries that examine a minimum number of rows regardless of their execution time.

  Find queries impacting performance

  Slow query logs contains the below fields

  • start_time
  • user_host
  • query_time
  • lock_time
  • rows_sent
  • rows_examined
  • db
  • last_insert_id
  • insert_id
  • server_id
  • sql_text
  • thread_id
• The sql_text field contains the actual query which was executed. Based on the query_time we find out the total execution time for each query.
• Based on these fields we can classify the queries,

  Query classification	Identification field
  Full table scan	sql_text without limit and where clause
  Slow query	query_time

Solutions

• Now explore examples with some queries,

  • For example, let’s create a users table using

    CREATE TABLE users (
    id int NOT NULL AUTO_INCREMENT,
    uuid int,
    LastName varchar(255),
    FirstName varchar(255),
    Tenant varchar(255) NOT NULL
    PRIMARY KEY (id)
    );

    In the users' table, we have an integer id as a primary key and another unique identifier as an uuid field.

Reasons for slow queries

• Missing indices

  SELECT uuid FROM users WHERE uuid IS NOT NULL;

  • This is the case where we can create an index on the uuid column,

    CREATE INDEX indexname ON users (uuid);

• Unoptimized indices - use composite indices

  SELECT uuid FROM users WHERE uuid IS NULL AND tenant = "Tenant";

  • This is the case where we can use multiple-column indexes.

  • MySQL can use multiple-column indexes for queries that test all the columns in the index, or queries that test just the first column, the first two columns, and so on. If you specify the columns in the right order in the index definition, a single composite index can speed up several kinds of queries on the same table.

    CREATE INDEX multicolumnindexname ON users (uuid, tenant);

  • The multicolumnindexname index is an index over the uuid and tenant columns. The index can be used for lookups in queries that specify values in a known range for combinations of uuid and tenant values. It can also be used for queries that specify just a uuid value because that column is the leftmost prefix of the index. Therefore, the multicolumnindexname index is used for lookups in the following queries:

    SELECT * FROM users where uuid IS NULL AND tenant = "tenant";
    SELECT * FROM users where uuid = 123;
    SELECT * FROM users
    WHERE uuid is NOT NULL
    AND (tenant='Tenant 1' OR tenant='Tenant 2');

  • But multicolumnindexname can not be used for the following queries,

    SELECT * FROM users where tenant = "tenant";
    SELECT * FROM user
    WHERE uuid = 123
    OR tenant = "tenant"

  • As an alternative to a composite index, you can introduce a column that is “hashed” based on information from other columns. If this column is short, reasonably unique, and indexed, it might be faster than a “wide” index on many columns. In MySQL, it is very easy to use this extra column

    SELECT * FROM tbl_name
    WHERE hash_col=MD5(CONCAT(val1,val2))
    AND col1=val1 AND col2=val2;

• Select * on Table without limits

  SELECT * FROM users;

  • When this type of query is executed they examine all the rows of the table and return a large amount of data when the total number of rows in your table is high.

  • To avoid this full row examination we should execute these queries with limits like

    SELECT * FROM users limit 500;

Analytics services may require some heavy queries

• Solutions
• Reduce joins
• Create separate tables
• High Availability architecture with read replicas (next blog article)

Using AWS cloudwatch with log slow query logs

• If you are using AWS RDS as your database server then you can use AWS cloudwatch to see the slow query logs.

• Sending database logs to AWS cloudwatch logs

  • Make sure you have set the slow_query_log variable to 1 and the log_output variable to FILE.
  • Open the Amazon RDS console at https://console.aws.amazon.com/rds/.
  • In the navigation pane, choose Databases, and then choose the DB instance that you want to modify.
  • Choose Modify.
  • In the Log exports section, choose the logs that you want to start publishing to CloudWatch Logs.
  • Choose Continue, and then choose Modify DB Instance on the summary page.

Benefits of sending slow query logs to cloudwatch logs

• You can create alarms on the cloudwatch logs stream.
  • Whenever there is a new query logged in cloudwatch logs it will send a notification with those details.

• Using cloudwatch insights you can create a dashboard where you can visualize your data effectively.
• Cloudwatch insight is an interface that can make it easier to search and aggregate data across thousands of individual log files.

• To create a dashboard for the slow query logs we can search the log using the following query

  parse @message "Query_time: *  Lock_time: * Rows_sent: * Rows_examined: *\n*" as Query_time,Lock_time,Rows_sent,Rows_examined,query
  | filter Query_time > 0.1
  | sort Query_time desc

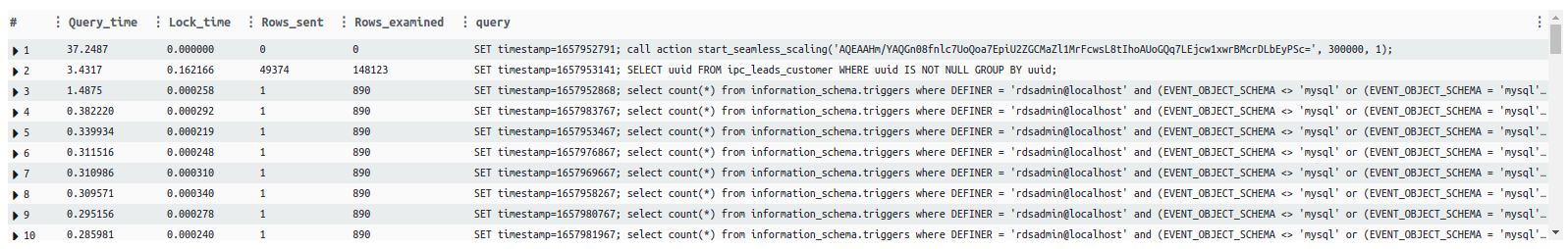

• Demo dashboard created using the above query
